來源：山東休普動力科技股份有限公司 時間：2017-04-26

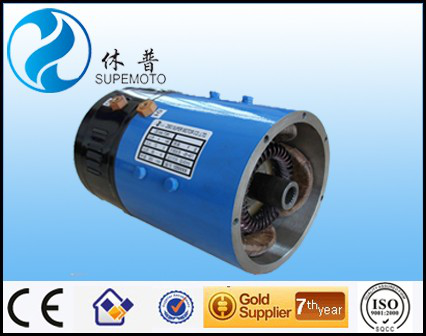

無端蓋、法蘭聯接、凸軸伸、19齒漸開線內花鍵，廣泛應用于游覽觀光車、小型電動轎車等。
注：ZC為串勵 ZT為他勵
串勵型：
|
型號 |
額定功率 |
額定電壓 |
額定電流 |
額定轉速 |
額定扭矩 |
絕緣 |
防護等級 |
工作制 |
|
ZC3-48 |
3 |
48 |
78 |
2800 |
10.2 |
F |
IP20 |
60min |
|
ZC3-60 |
3 |
60 |
63 |
1500 |
19.1 |
F |
IP20 |
60min |
|
ZC3-60 |
3 |
60 |
63 |
2800 |
10.2 |
F |
IP20 |
60min |
|
ZC4-48 |
4 |
48 |
104 |
1500 |
25.4 |
F |
IP20 |
60min |
|
ZC4-48 |
4 |
48 |
104 |
2800 |
13.6 |
F |
IP20 |
60min |
|
ZC4-60 |
4 |
60 |
83 |
2000 |
19.1 |
F |
IP20 |
60min |
|
ZC4-60 |
4 |
60 |
83 |
2500 |
15.3 |
F |
IP20 |
60min |
|
ZC4-60 |
4 |
60 |
83 |
2800 |
13.6 |
F |
IP20 |
60min |
|
ZC4-72 |
4 |
72 |
69 |
2000 |
19.1 |
F |
IP20 |
60min |
|
ZC4-72 |
4 |
72 |
69 |
2500 |
15.3 |
F |
IP20 |
60min |
|
ZC4-72 |
4 |
72 |
69 |
2800 |
13.6 |
F |
IP20 |
60min |
|
ZC5-48 |
5 |
48 |
130 |
1500 |
31.8 |
F |
IP20 |
60min |
|
ZC5-48 |
5 |
48 |
130 |
2800 |
17 |
F |
IP20 |
60min |
|
ZC5-60 |
5 |
60 |
104 |
2000 |
23.8 |
F |
IP20 |
60min |
|
ZC5-60 |
5 |
60 |
104 |
2500 |
19.1 |
F |
IP20 |
60min |
|
ZC5-60 |
5 |
60 |
104 |
2800 |
17 |
F |
IP20 |
60min |
|
ZC5-72 |
5 |
72 |
87 |
2800 |
17 |
F |
IP20 |
60min |
|
ZC5-96 |
5 |
96 |
65 |
2800 |
17 |
F |
IP20 |
60min |
他勵型：
|
型號 |
額定功率 |
額定電壓 |
額定電流 |
額定轉速 |
額定扭矩 |
絕緣 |
防護等級 |
工作制 |
|
ZT3-48 |
3 |
48 |
78 |
2800 |
10.2 |
F |
IP20 |
60min |
|
ZT3-60 |
3 |
60 |
63 |
1500 |
19.1 |
F |
IP20 |
60min |
|
ZT3-60 |
3 |
60 |
63 |
2800 |
10.2 |
F |
IP20 |
60min |
|
ZT4-48 |
4 |
48 |
104 |
1500 |
25.4 |
F |
IP20 |
60min |
|
ZT4-48 |
4 |
48 |
104 |
2800 |
13.6 |
F |
IP20 |
60min |
|
ZT4-60 |
4 |
60 |
83 |
2000 |
19.1 |
F |
IP20 |
60min |
|
ZT4-60 |
4 |
60 |
83 |
2500 |
15.3 |
F |
IP20 |
60min |
|
ZT4-60 |
4 |
60 |
83 |
2800 |
13.6 |
F |
IP20 |
60min |
|
ZT4-72 |
4 |
72 |
69 |
2000 |
19.1 |
F |
IP20 |
60min |
|
ZT4-72 |
4 |
72 |
69 |
2500 |
15.3 |
F |
IP20 |
60min |
|
ZT4-72 |
4 |
72 |
69 |
2800 |
13.6 |
F |
IP20 |
60min |
|
ZT5-48 |
5 |
48 |
130 |
1500 |
31.8 |
F |
IP20 |
60min |
|
ZT5-48 |
5 |
48 |
130 |
2800 |
17 |
F |
IP20 |
60min |
|
ZT5-60 |
5 |
60 |
104 |
2000 |
23.8 |
F |
IP20 |
60min |
|
ZT5-60 |
5 |
60 |
104 |
2500 |
19.1 |
F |
IP20 |
60min |
|
ZT5-60 |
5 |
60 |
104 |
2800 |
17 |
F |
IP20 |
60min |
|
ZT5-72 |
5 |
72 |
87 |
2800 |
17 |
F |
IP20 |
60min |
|
ZT5-96 |
5 |
96 |
65 |
2800 |
17 |
F |
IP20 |
60min |
|
型號 |
功率 |
結構特點 |
電機機座號 |
應用場合 |
規格范圍 |
|

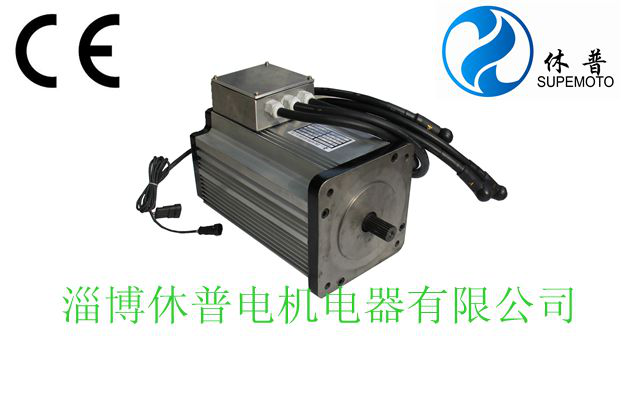

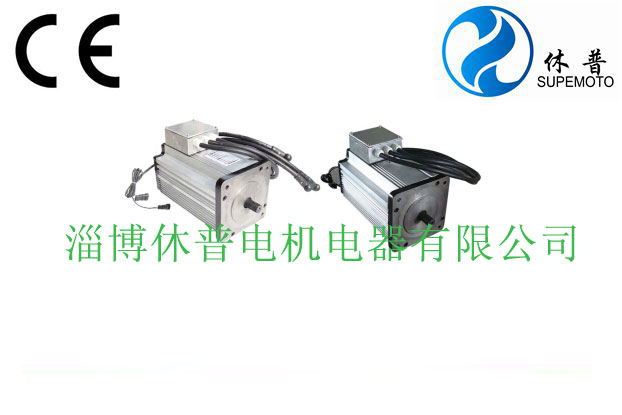

交流變頻牽引電動機 |
5KW-10KW |
22齒軸、六齒外花鍵 |
112 |
廣泛應用于電動轎車、觀光車、清掃車等車輛。 |
直流電壓范圍：48V-96V;功率范圍：5KW-0KW;最高轉速：5000rpm |
電機參數：
5kw,48V,77止口，140x140 4-13安裝孔
一般適合車輛凈重900~1100kg，速比1:8，時速55km/h左右，爬坡20%
